Just released at MODEX 2018 in Atlanta in April, 2018!

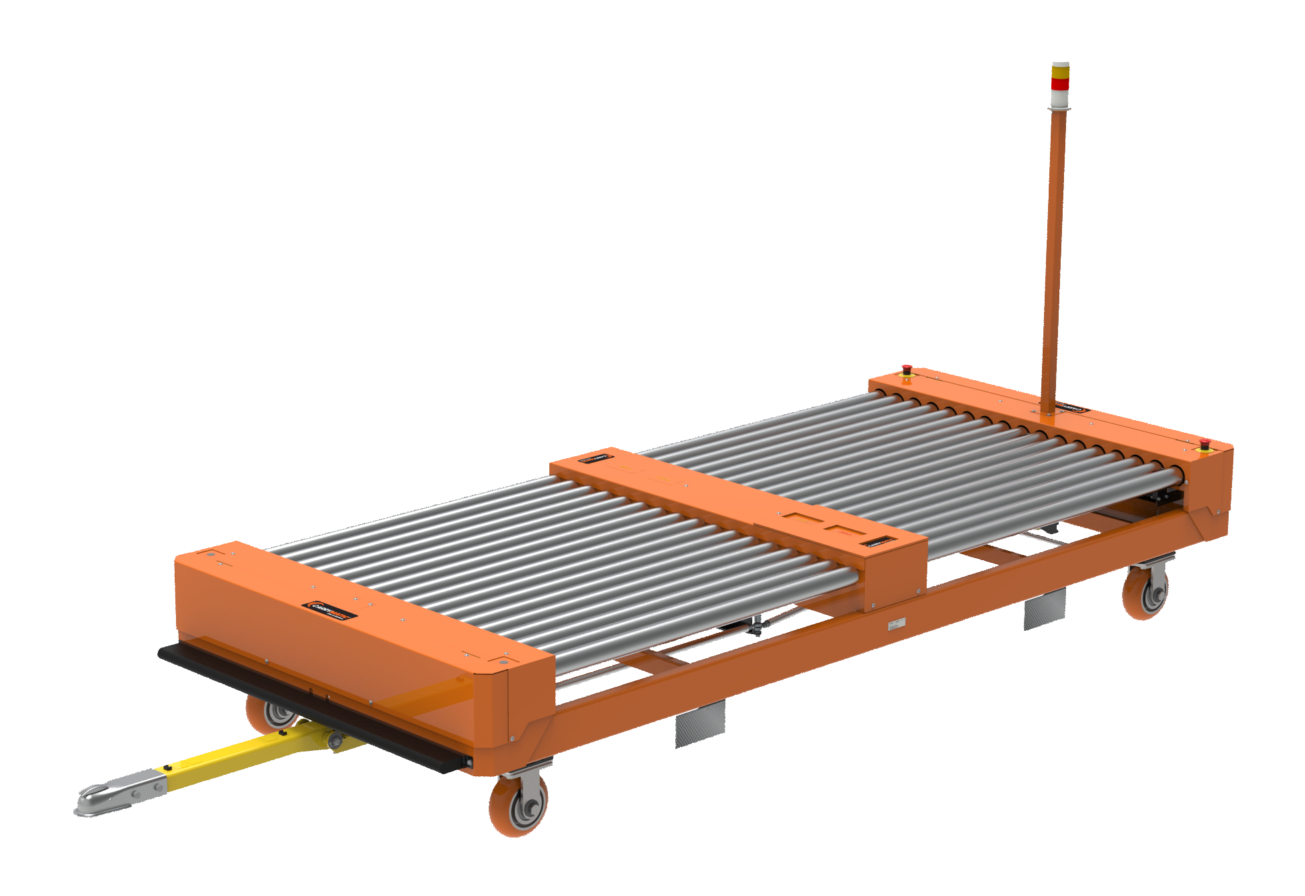

Our J-tec design and engineering team have released a unique hands-free materials delivery system to complement our award-winning CarryMore Tugger Cart System used in facilities world-wide. This new automated cart delivery system is now available to the manufacturing and distribution industries. CARRYMATiC smart carts, pulled by tuggers equipped with a CARRYMATiC control module, are delivered to smart lineside stations where they automatically off-load or on-load containers needed at that site. Routes are pre-determined and programmed, requiring only one driver (or no driver if using an AGV) to operate the tugger. The operator, however, does not need to leave the tugger vehicle to complete deliveries. This is truely a hands-free delivery system.


12408 train.1


The technology to drive accurate delivery and improved loading and unloading comes from the CARRYMATiC master module, located within a facility at a specified location. It "talks" to the CARRYMATiC control modules aboard each smart cart, and syncs to the tugger module monitored by each operator. This wireless technology will work in any envoronment, and, even with internet signal failures, deliveries can still be mannually, electronically completed at each station. This dual system operating design ensures 100% "up" time for each train and is unique to the CARRYMATiC system.


This hands-free, no-touch delivery process speeds deliveries and ensures accuracy of delivery placement to the right location, at the right time. It also improves productivity and eliminates the possibility of ergonomic-related stresses from manually loading or unloading carts. In automated mode, using an AGV, operators are not needed to perform deliveries.


See it demonstrated here:




 pulling through aisles


CARRYMATiC train pulled by an autonomous AGV, guides itself to the next station after picking up bulk boxes with materials at another location in the supermarket.


 Lineside with cart and worker walking away


After the train arrives at lineside and unloads two containers of materials, a worker rolls a flatbed from its docking station to the assembly station.


The number of smart carts used in one train is only limited to the hauling capacity of the tugger vehicle. Typically, four carts, containing 2,000 lbs. of cargo per cart bay, will maximize each delivery train. This new CARRYMATiC system is now available for ordering. Call our sales team today at (309) 698-9301.
