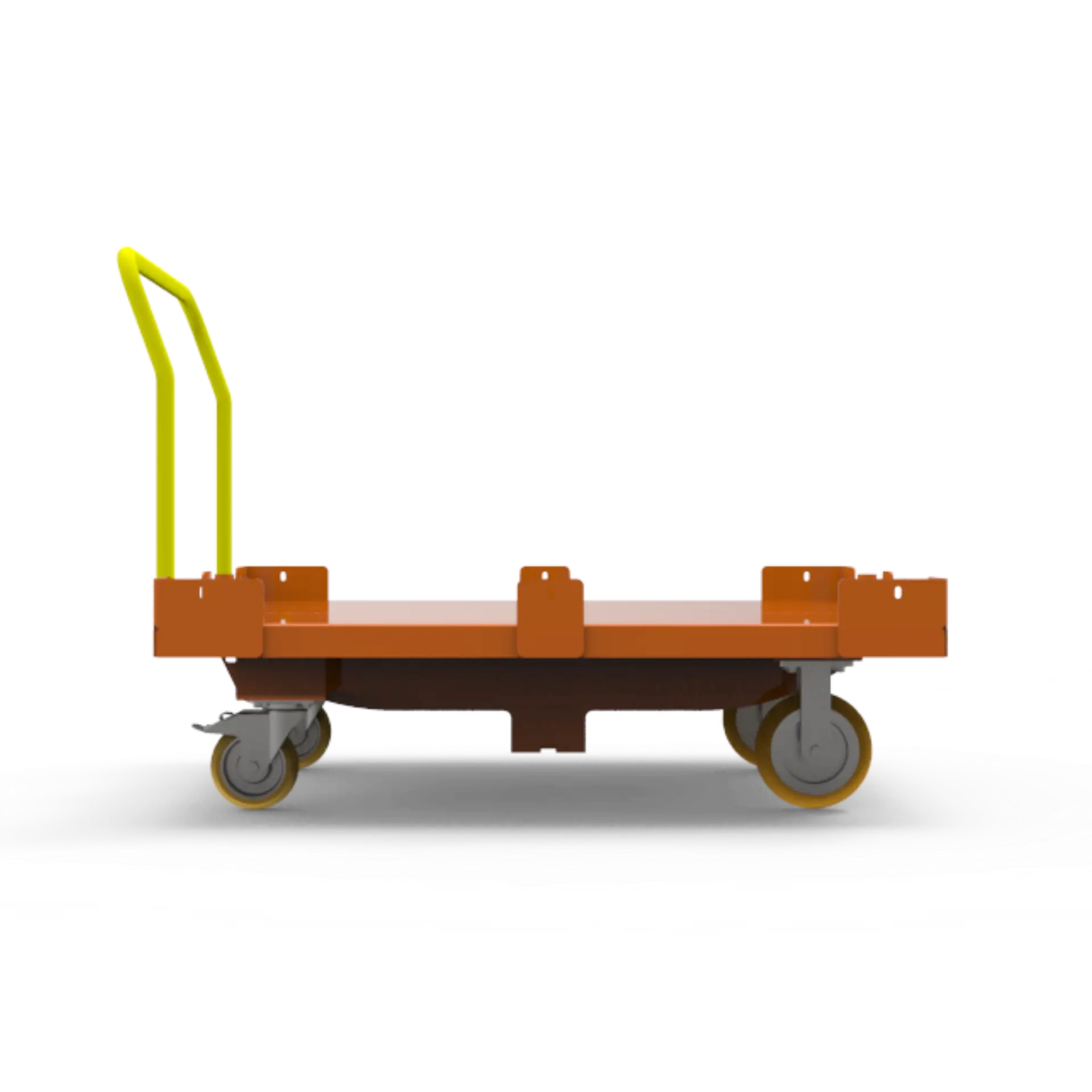

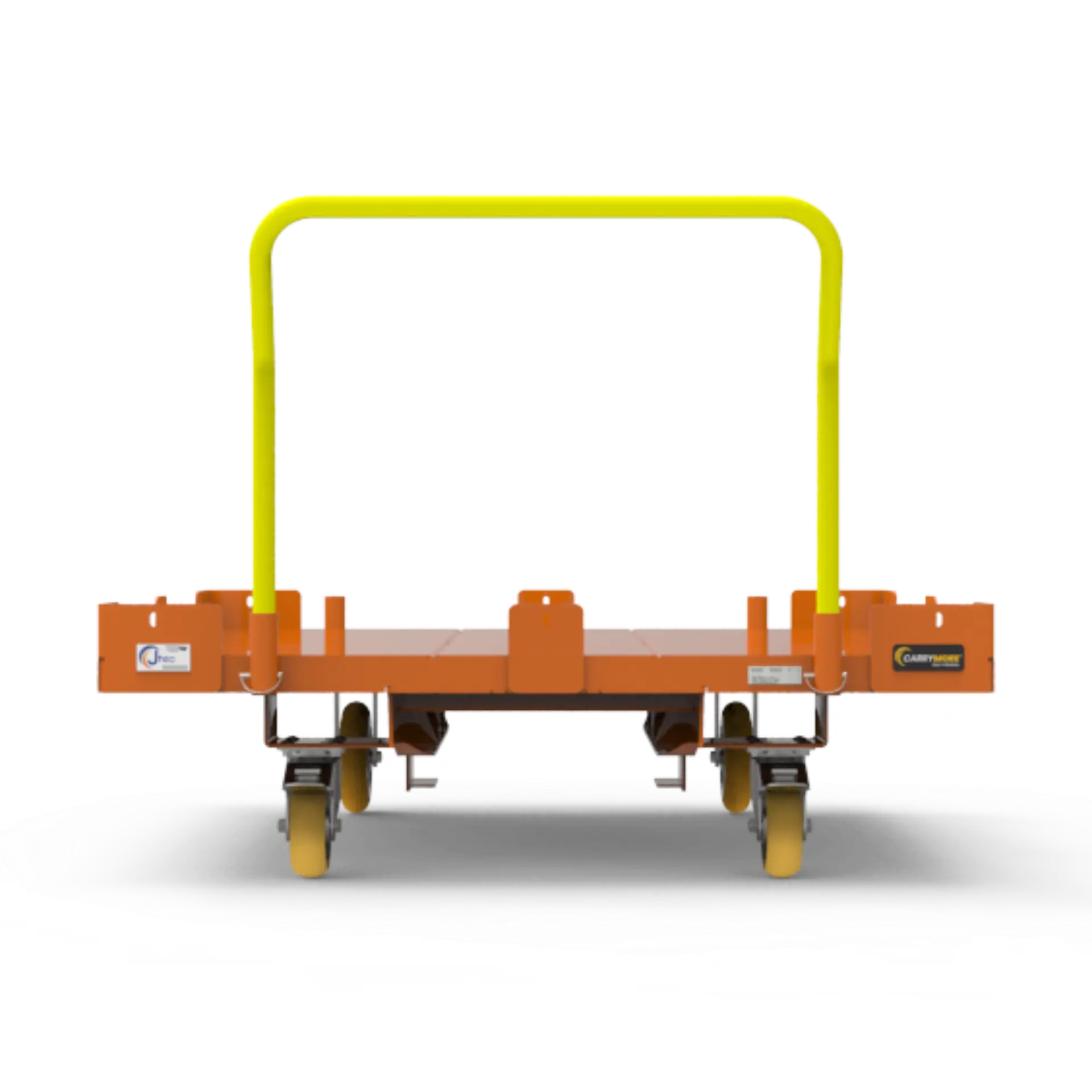

Premium Casters – 2 Rigid, 2 Swivel with face Contact BrakeStandard corner and center captures for retainment2000 lb Capacity Standard Ergo Push HandleExtreme Low MaintenanceThe Flatbed Tugger Cart – 50″ x 50″ RHAFF-5050-20 (Rider, “HA” Size, Flatbed, Full Deck) is part of our CarryMore mother-daughter cart system. This daughter cart features a 50″ x 50″ deck with standard corner and center captures designed around the 45″ x 48″ knock down container or standard pallets for secure load retainment. The cart rides on premium poly casters with 2 rigid, 2 swivel casters with the alumilock face contact brake for better steering control.
This cart is compatible with the “HA” series, which allows daughter carts to be loaded from either side. It is protected with powder-coat paint available in multiple colors. It can carry up to 2000 lbs. The ergo handle has a bend to keep operators’ hands away from the load and is at the optimum height of 43″ from the ground. The CarryMore system increases safety, productivity, and reduces cost.
For more information, contact us today.
Need More Information? Have Us Contact You
The RHAFF-5050-20 HA-Size Flatbed Cart can carry loads weighing up to 2,000 pounds. Its full 50-inch by 50-inch deck accommodates standard pallets, 48″ × 45″ knockdown containers, and other materials that fit securely within the deck footprint.
Standard corner and center captures help retain pallets and knockdown containers on the deck. These captures are designed around common 45″ × 48″ container and pallet footprints. Additional retention may be required for loads that are tall, unstable, irregularly shaped, or smaller than the standard capture arrangement.
The RHAFF-5050-20 is designed for the HA-Size TCHA-20 Pass-Through Mother Cart and uses Elemate 2.0 engagement features. The TCHA-20 can accept this daughter cart from either side of its H-frame and lift the cart completely off the floor for tugger transport.
The cart rides on premium poly casters with two rigid and two swivel casters. The swivel casters include Alumilock face-contact brakes for better steering control and secure parking. Push effort and maneuverability still depend on the payload, floor condition, slope, travel distance, and frequency of manual movement.
The removable ergonomic handle has a bend that helps keep the operator’s hands away from the load. The product page lists the handle at a 43-inch working height. This placement supports controlled manual movement when positioning the daughter cart before loading or after removal from the mother cart.
The cart is built from 11-gauge steel and protected with a powder-coat finish available in multiple standard colors. Its mechanical design and replaceable components support industrial use with limited maintenance requirements. Inspection should focus on casters, brakes, handles, captures, and Elemate engagement points.
