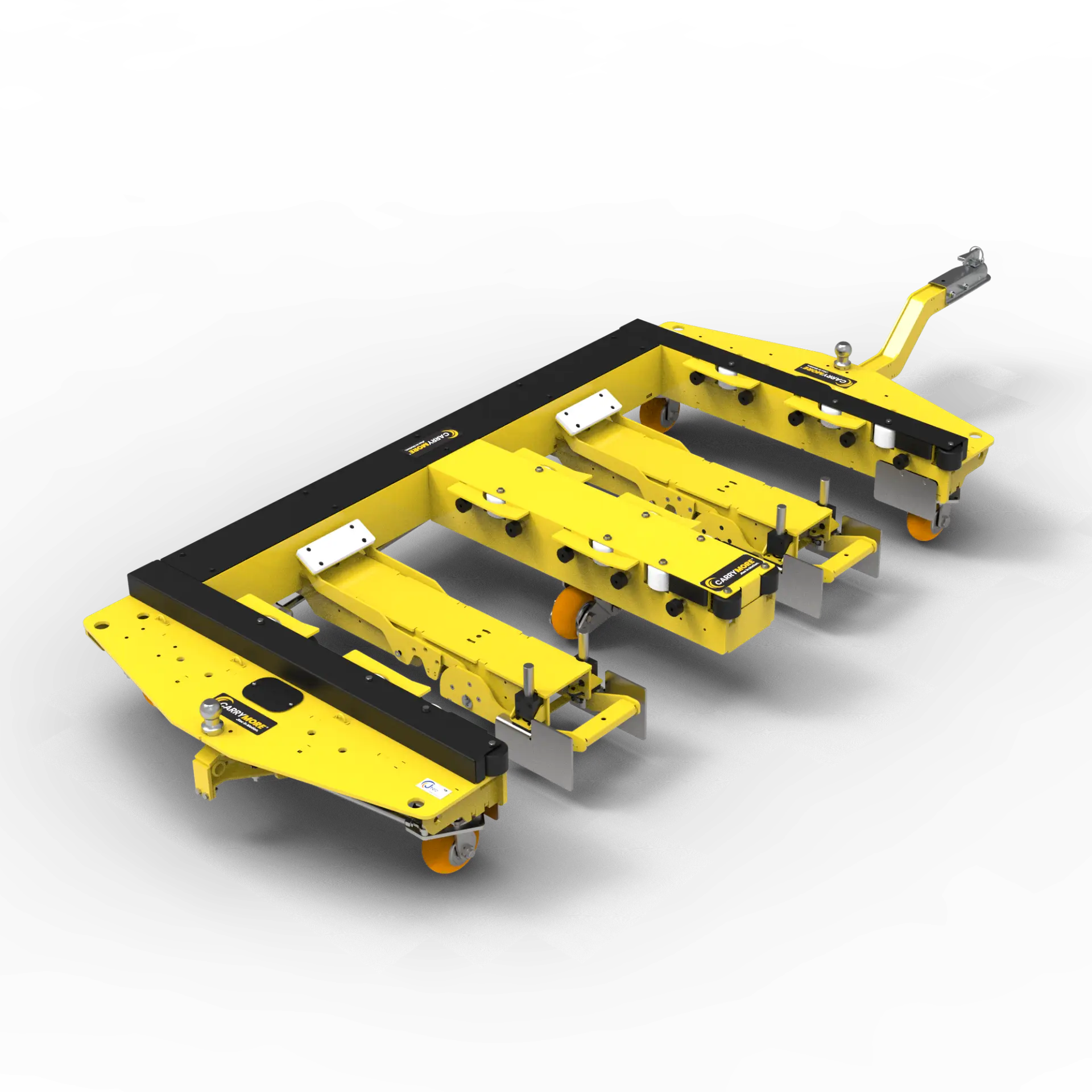

Tight-turn Technology Quad-Steer DesignElemate 1.0 allows the daughter cart to ride off the groundFull Mechanical Center Latch DesignExtreme Low MaintenanceThe Mother Cart – Dual Bay TQDK-30 (Tugger, Quad-Steer, dual-Bay, “K” Size) is part of our CarryMore system. It features our patented, fully mechanical lift technology, lifting the daughter carts completely off the ground during transport. The true quad-steer design creates superior tracking in transit and allows this cart to make tight turns with minimal walk-in from the first cart to the last in the train.
Stout, premium casters help easily tug up to 3,000 lbs and can be pulled in either direction with a quick change of the tongue, and can be arranged to be loaded from either side of the aisle.
Carts are easily connected with a standard 2″ ball hitch that creates a quiet, smooth, and consistent follow path. Maximize capacity with dual bays, allowing you to pull 2 individual carts or one large cart through both bays. Daughter carts can range from 25″ X 50″ to 39″ X 50″ in a single bay or up to 88″ x 50″ as a dual bay cart. The CarryMore system increases safety, productivity, and reduces cost.
For more information, contact us today.
Need More Information? Have Us Contact You
The TQDK-30 K-Size Dual-Bay Mother Cart has a total capacity of up to 3,000 pounds. This rating applies whether the cart carries two individual daughter carts or one oversized cart spanning both bays. The combined load must remain within the rated capacity and be appropriately distributed.
Each bay accommodates K-Size daughter carts ranging from 25″ × 50″ to 39″ × 50″. A single oversized daughter cart measuring up to 88″ × 50″ can span both bays. Final compatibility depends on the daughter cart’s overall dimensions, load distribution, and engagement points.
The fully mechanical Elemate 1.0 system uses a dual-pin center latch to engage and lift the daughter carts off the floor for transport. Because the daughter-cart casters do not contact the floor while loaded, the mother cart controls tracking and movement throughout the tugger route without hydraulic or pneumatic lift components.

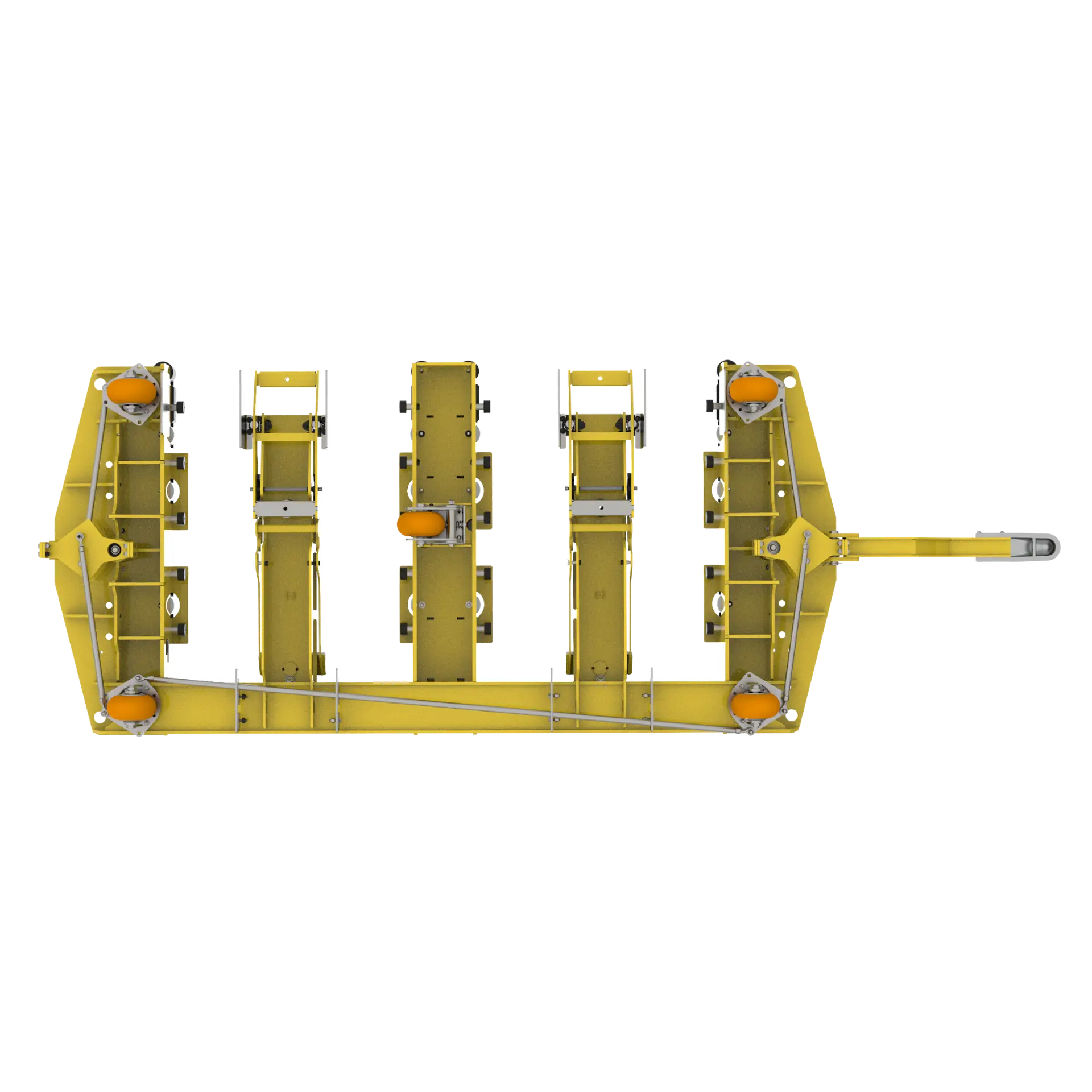

The true quad-steer design helps the TQDK-30 follow the tow vehicle through tight turns with minimal walk-in between carts. This supports predictable tracking when multiple mother carts are connected into a train. Required turning space still depends on train length, aisle width, intersections, payload, and route conditions.
Yes. The TQDK-30 can be arranged for loading from either side of the aisle. A quick-change, reusable tongue also allows the cart to be pulled in either direction. This flexibility can support different line-side layouts without requiring the entire cart to be turned around before returning along the route.
The carts connect through a standard 2-inch ball hitch designed to create a smooth, consistent follow path. The TQDK-30 has a listed maximum speed of 5 mph. Tow-vehicle capacity, total train weight, number of carts, stopping distance, and route conditions must be evaluated before operation.
