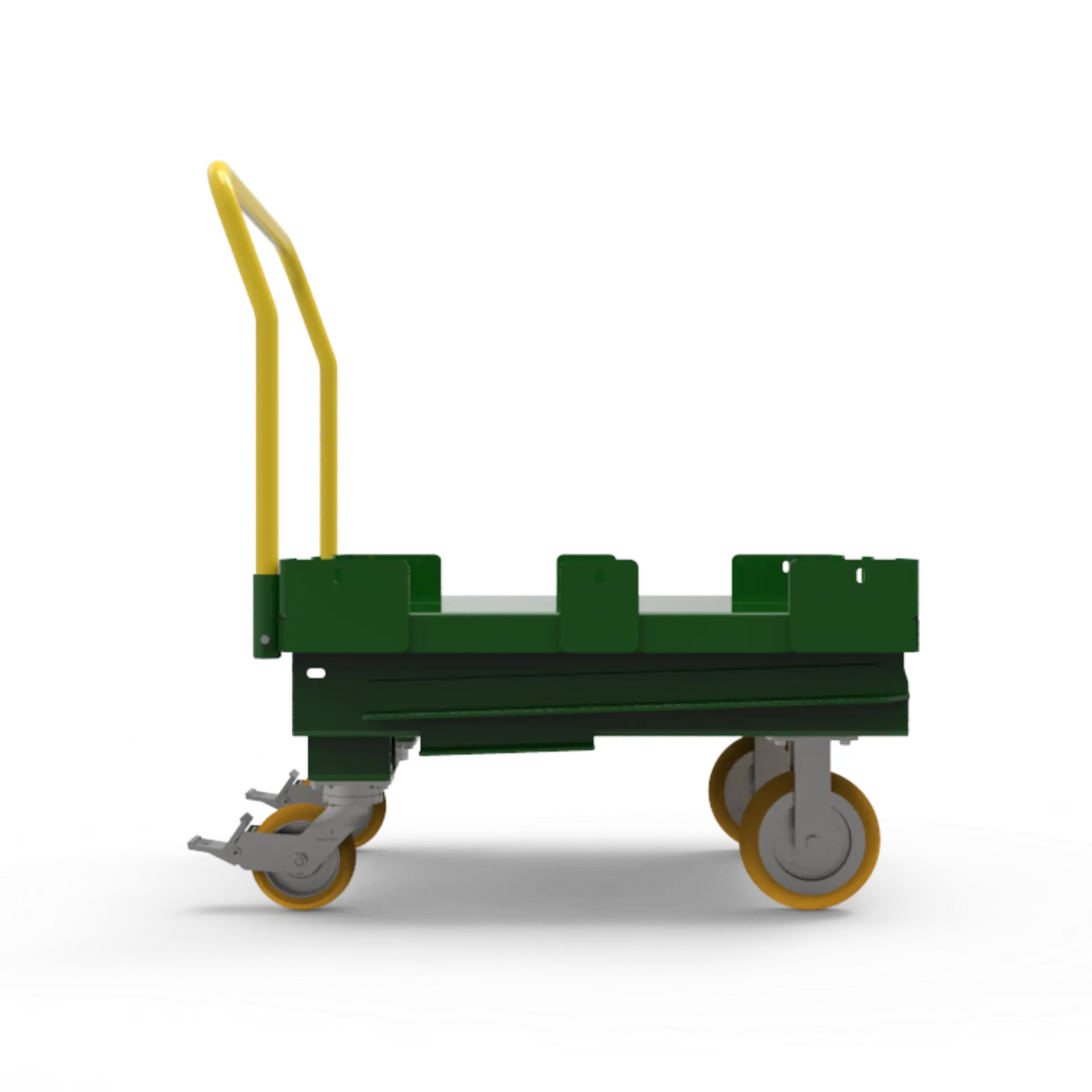

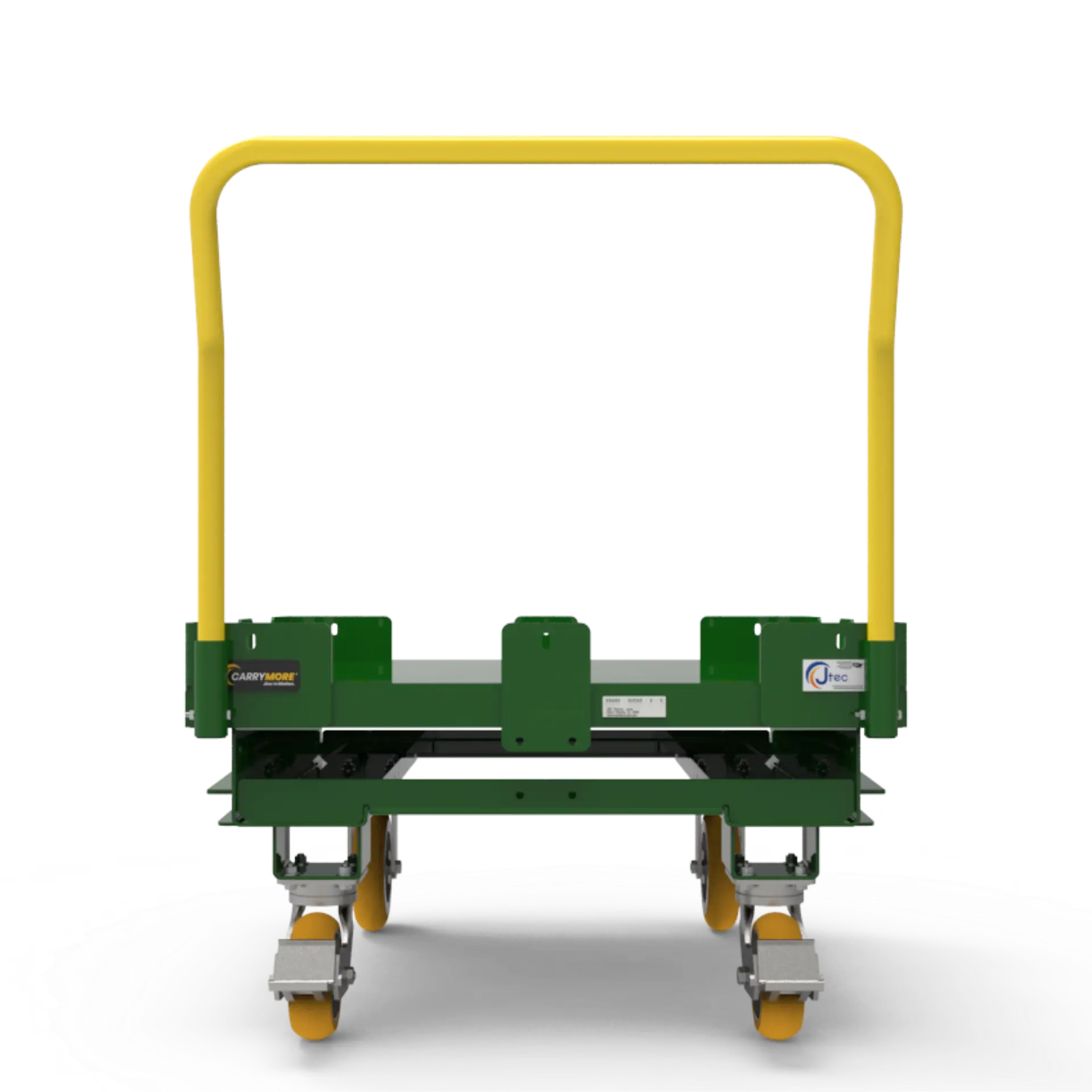

Premium Casters – 2 Rigid, 2 Swivel with face Contact BrakeStandard corner and center captures for retainment2500 lb Capacity Standard Ergo push handleExtreme Low MaintenanceThe Flatbed Tugger Cart – 34″ x 34″ RBFF-3434-25 (Rider, “B” Size, Flatbed, Full Deck) is part of our CarryMore mother-daughter cart system. This daughter cart features standard corner and center captures designed around the 32″ x 30″ knock down container or smaller pallets for secure load retainment. The cart rides on premium poly casters with 2 rigid, 2 swivel casters with the alumilock face contact brake for better steering control.
This cart is protected with powder-coat paint available in multiple standard colors. it can carry up to 2500 lbs and works with any of the “B” size mother carts. The ergo handle has a bend to keep operators’ hands away from the load and is at the optimum height of 43″ from the ground. The CarryMore system increases safety, productivity, and reduces cost.
For more information, contact us today.
Need More Information? Have Us Contact You
The RBFF-3434-25 Flatbed Tugger Cart has a maximum load capacity of 2,500 pounds. Its compact full-deck design supports appropriately sized containers, pallets, and materials within Jtec Industries’ CarryMore mother-daughter cart system. Facilities should verify each load’s footprint, total weight, weight distribution, and stability before transport.
The cart’s retention features are designed around a 32″ × 30″ knock-down container or smaller pallets. Other materials may fit within the 34″ × 34″ deck, but their base dimensions, weight distribution, and stability should be evaluated. Each load must remain within the cart’s 2,500-pound maximum capacity.
Standard corner and center captures help keep compatible containers and pallets positioned on the deck while the cart is moving. These physical retention points reduce unwanted load movement during starts, stops, and turns. Facilities should confirm that the selected load properly engages the captures and remains stable throughout the intended material-delivery route.
The RBFF-3434-25 is a B-size daughter cart designed to work with any of Jtec Industries’ B-size mother carts. The product page identifies B-size quad-steer and dual-bay mother carts as compatible options. Final selection should account for cart quantity, route layout, aisle width, loading direction, load weight, and maneuverability requirements.
The cart uses premium polyurethane casters arranged with two rigid and two swivel casters. The swivel casters include an Alumilock face-contact brake for improved steering control and stationary positioning. Regular inspection of the casters and brakes helps confirm that they remain suitable for the facility’s floor conditions, load weights, and frequency of use.
The standard ergonomic push handle is positioned 43 inches above the ground and includes a bend that helps keep the operator’s hands separated from the load. This design supports controlled manual positioning when the daughter cart is outside its mother cart. Operators should follow facility procedures for load stability, safe hand placement, and manual cart movement.
