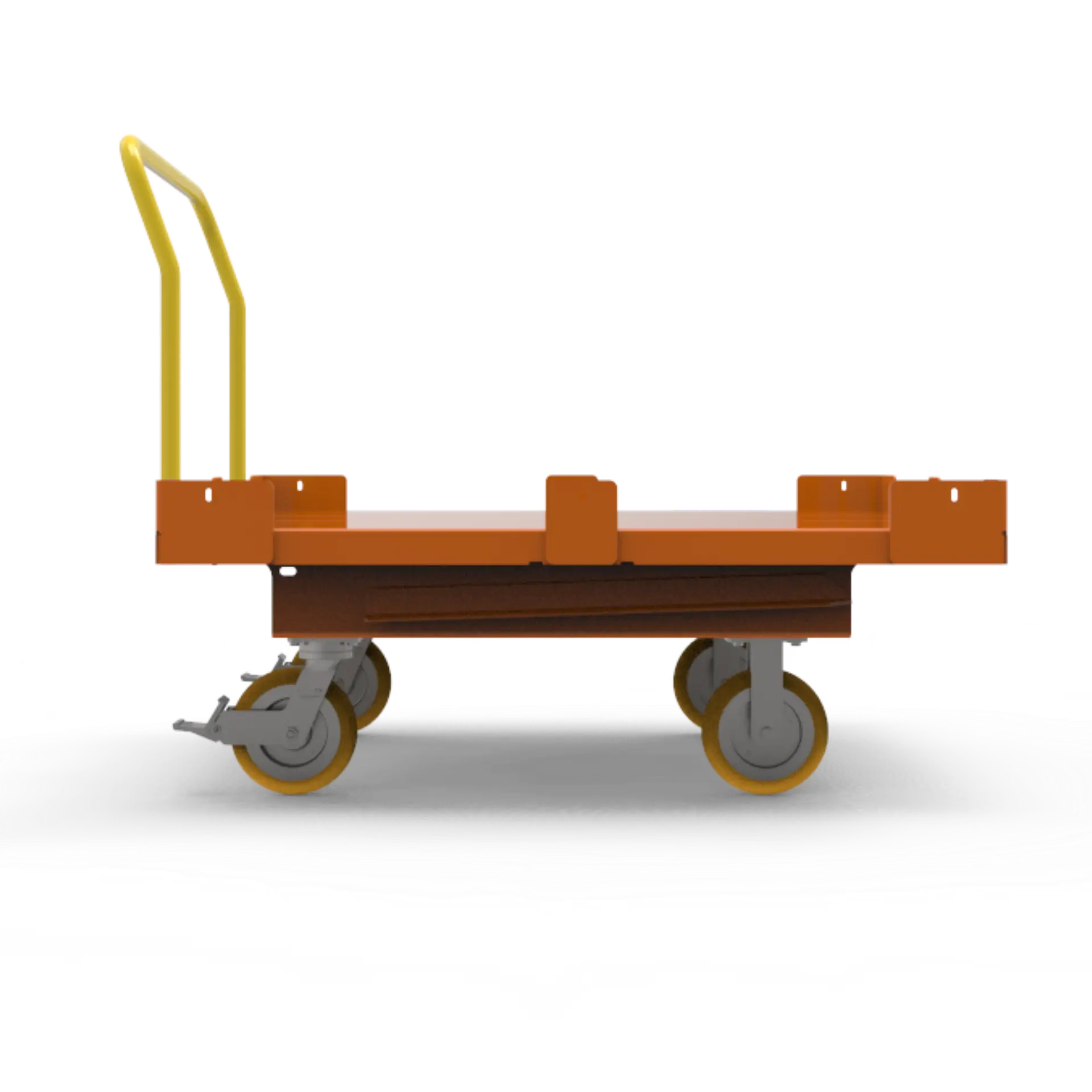

Premium Casters – 2 Rigid, 2 Swivel with face Contact BrakeStandard corner and center captures for retainment4000 lb Capacity Standard Ergo push handleExtreme Low MaintenanceThe Flatbed Tugger Cart – 50″ x 50″ RAFF-5050-40 (Rider, “A” Size, Flatbed, Full Deck) is part of our CarryMore mother-daughter cart system. This daughter cart features standard corner and center captures designed around the 45″ x 48″ knock down container or standard pallets for secure load retainment. The cart rides on premium poly casters with 2 rigid, 2 swivel casters with the alumilock face contact brake for better steering control.
This cart is protected with powder-coat paint available in multiple standard colors. It can carry up to 4000 lbs and works with any of the “A” size mother carts. The ergo handle has a bend to keep operators’ hands away from the load and is at the optimum height of 43” from the ground. The CarryMore system increases safety, productivity and reduces cost.
For more information, contact us today.
Need More Information? Have Us Contact You
The RAFF-5050-40 provides a full flat deck for transporting pallets, knock-down containers, and other compatible loads within Jtec’s CarryMore mother-daughter cart system. Its standard captures are designed around 45″ x 48″ knock-down containers and standard pallets. Other loads should be evaluated for dimensions, weight, stability, and retention requirements.
The cart can carry loads weighing up to 4,000 lbs. Load weight must remain within this capacity and be distributed appropriately across the deck. The load’s dimensions, center of gravity, base construction, and required retention should also be considered when determining whether the cart fits your application.
Standard corner and center captures help retain compatible pallets and containers on the full deck during transport. These captures are designed around 45″ x 48″ knock-down containers and standard pallets. Loads with different footprints or base designs may require a separate review to determine whether additional or alternative retention is needed.
The cart rides on premium poly casters in a two-rigid and two-swivel configuration. The swivel casters include Alumilock face contact brakes for braking and steering control. Floor condition, load weight, travel distance, and required manual maneuverability should be considered when evaluating the cart for a specific route.
The standard ergonomic push handle is positioned 43″ from the ground. Its bent design helps keep the operator’s hands away from the load while manually maneuvering or positioning the cart. Loads should be arranged so they do not interfere with the handle area or obstruct the operator’s visibility.
