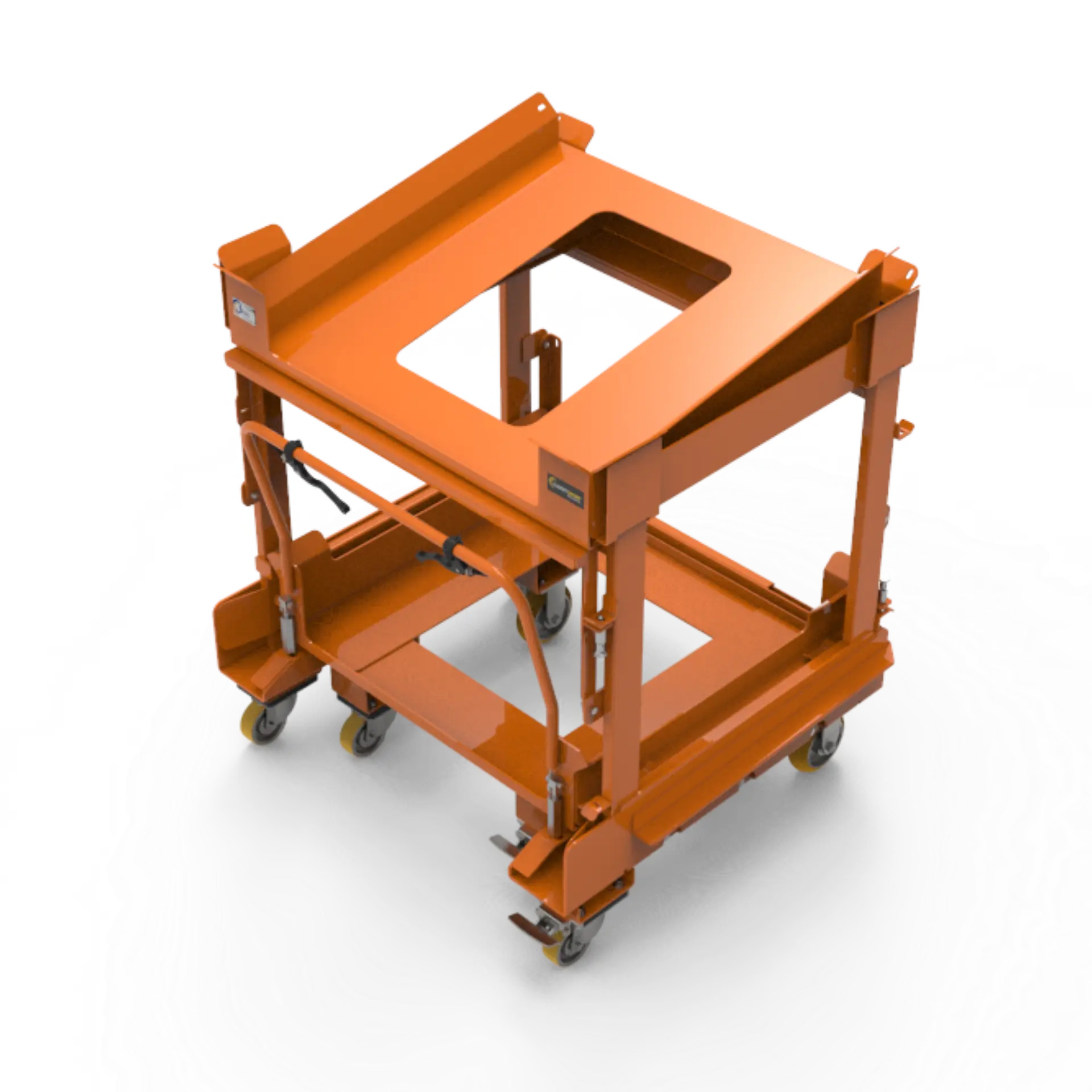

2 carts in one footprintPremium Casters – 2 Rigid, 2 Swivel, Always present total lock brake on each cart1500 lb total Capacity Extreme Low MaintenanceThe Over/Under Cart – 32″ x 30″ RAOU-3230-15 (Rider, “A” Size, Over, Under) is part of our CarryMore mother-daughter cart system. This daughter cart features two carts in one footprint. designed around the 32″ x 30″ knock down container each cart can provide access to materials at the same time, allowing you to double your line side space.
Flip-up wing on the under cart allows you to use each cart individually or both together in one mother cart bay. Each cart rides on premium poly casters with 2 rigid, 2 swivel casters, with one always present total lock brake.
This cart is protected with powder-coat paint available in multiple standard colors. It can carry up to 1500 lb on each level, for a total of 1500 lb, and works with any of the “A” size mother carts. The CarryMore system increases safety, productivity and reduces cost.
For more information, contact us today.
Need More Information? Have Us Contact You
The RAOU-3230-15 combines two carts within one operating footprint. Its stacked configuration allows operators to access materials from both carts while using less lineside floor space than two separately positioned carts. It is designed for facilities that need to present multiple loads or containers within a compact work area.
Each cart is designed around a 32″ x 30″ knock-down container. The upper and lower positions allow two containers to be presented within the same footprint. The suitability of a specific container depends on its dimensions, weight, construction, and the access required by operators at the point of use.
The Over/Under Cart has a total combined load capacity of 1,500 lbs. The weight of the materials carried across the upper and lower carts must remain within this total rating. Load distribution and the required container arrangement should be reviewed with Jtec when configuring the cart for a specific application.
Yes. A flip-up wing on the lower cart allows the two carts to be used individually or together within one CarryMore mother cart bay. This provides flexibility for routes that require both containers to travel together while still allowing either cart to be positioned independently at its lineside destination.
Each cart rides on premium poly casters in a two-rigid and two-swivel configuration. Each cart also includes an always-present total-lock brake. This arrangement supports steering during manual movement and allows the carts to be secured when positioned separately or together at the point of use.
The RAOU-3230-15 is an A-size daughter cart and works with any A-size CarryMore mother cart. Listed compatible configurations include Outdoor, Quad Steer, Electric Lift, Dual Bay, and Center Steer mother carts. The right configuration depends on your load, route, floor conditions, tow vehicle, and lineside space.
