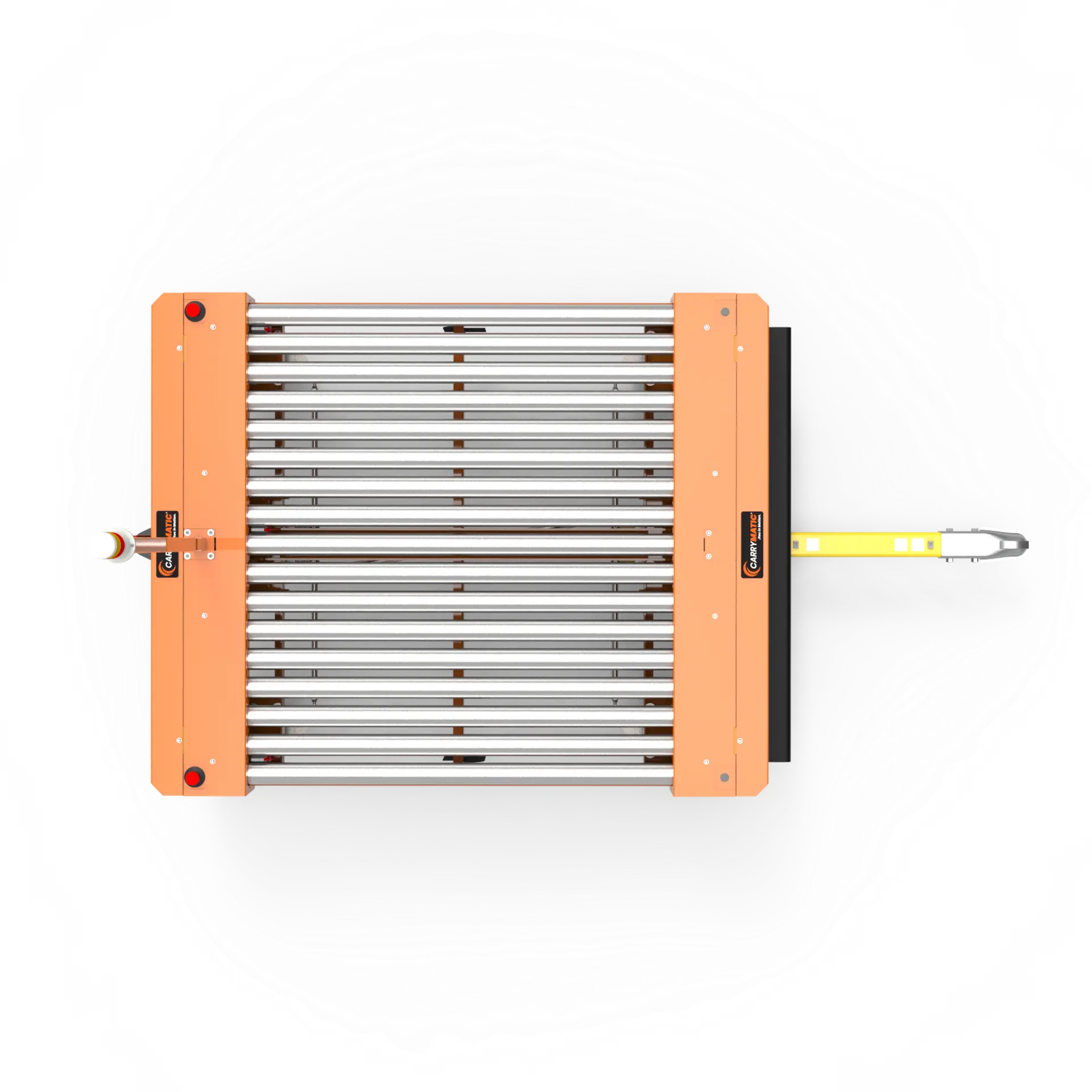

Powered Conveyor RollersQuad-Steer Steering System30 FPM Transfer SpeedAutonomous TransfersThe CarryMatic Powered Conveyor Cart – Single Bay is a powered roller conveyor cart designed for automated material transfers within a CarryMatic System. It features a quad-steer steering system that allows for tight turns and excellent tracking, and incorporates other features such as load sensors, motor drives, and a stack light. CarryMatic carts also feature a robust safety system that includes a safety bumper and multiple emergency stop buttons. The carts can be connected into trains, towed by any AGV tugger. These carts are sized to your load and weight capacity.
The CarryMatic system increases safety, productivity, and reduces cost. For more information, fill out the form to be contacted by a CarryMatic system expert.
Need More Information? Have Us Contact You
The Powered Conveyor Cart – Single Bay transports and automatically transfers one material load at a time within a CarryMatic system. Powered conveyor rollers move the load between the cart and compatible transfer stations, reducing manual handling between production, packaging, storage, and other process areas.
Motor drives power the conveyor rollers to load or unload material after the cart is properly aligned with a compatible station. Load sensors help monitor the material during the transfer, while the CarryMatic controls coordinate the cart, tow vehicle, and station to complete the required operating sequence.
The cart has a listed transfer speed of 30 feet per minute. Actual transfer performance depends on the load, roller configuration, station alignment, and system system controls. The load’s bottom surface must also maintain suitable contact with the rollers for consistent movement onto and off the cart.
The quad-steer system helps the cart make tight turns and track consistently behind the tow vehicle. This can make the single-bay cart well suited for routes with limited aisle space or frequent turns. Final maneuverability depends on the cart dimensions, train length, aisle width, intersection geometry, and route conditions.
Yes. Multiple Powered Conveyor Carts can be connected into a train and towed by an AGV tugger. The correct train configuration depends on the AGV’s towing capacity, individual cart and payload weights, route layout, stopping requirements, and the number of loads required for each delivery cycle.
The cart includes a safety bumper, multiple emergency-stop buttons, load sensors, and a stack light. These features help protect personnel and equipment while communicating cart status during transport and transfers. The complete safety sequence should be coordinated with the AGV, hitch control, transfer stations, and facility procedures.
