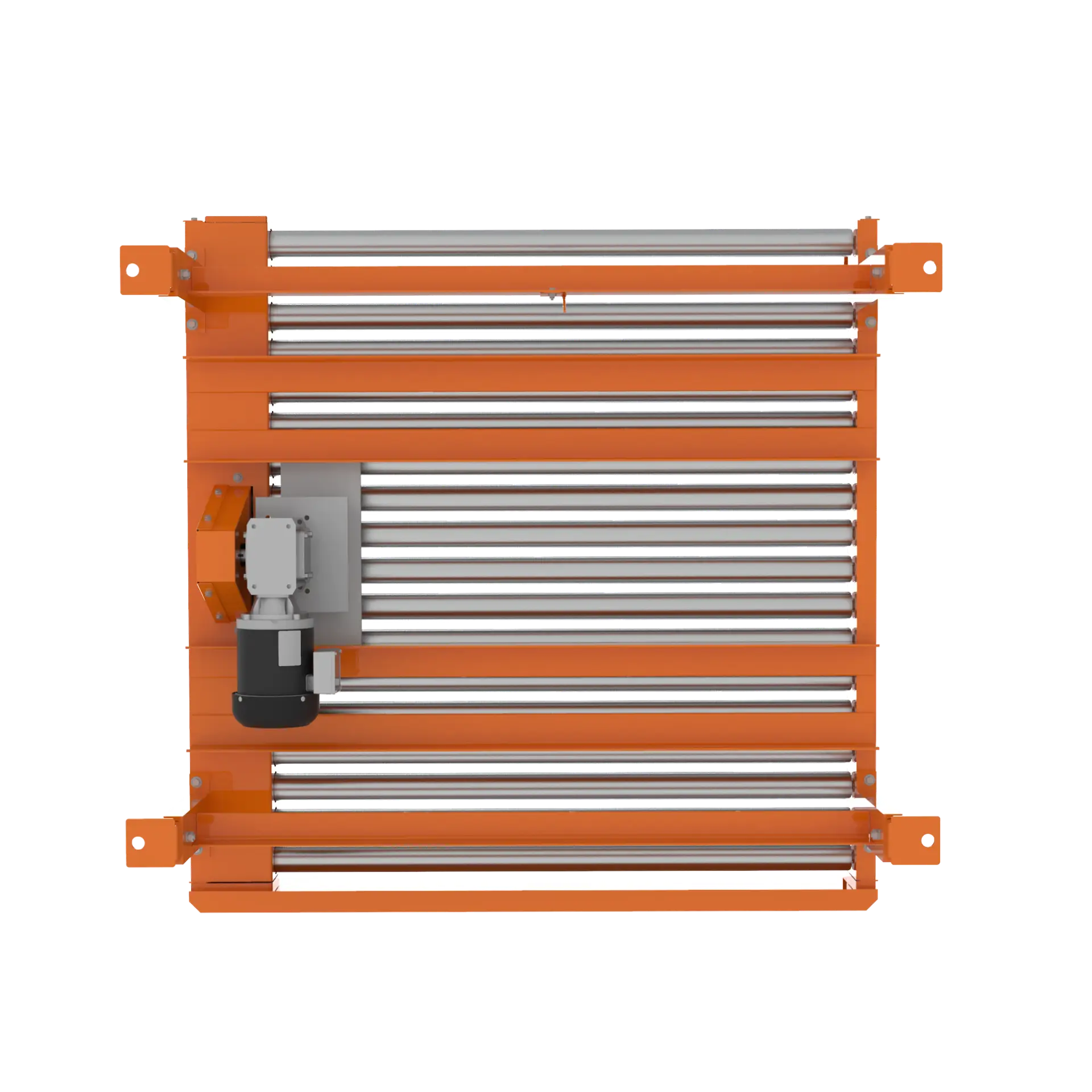

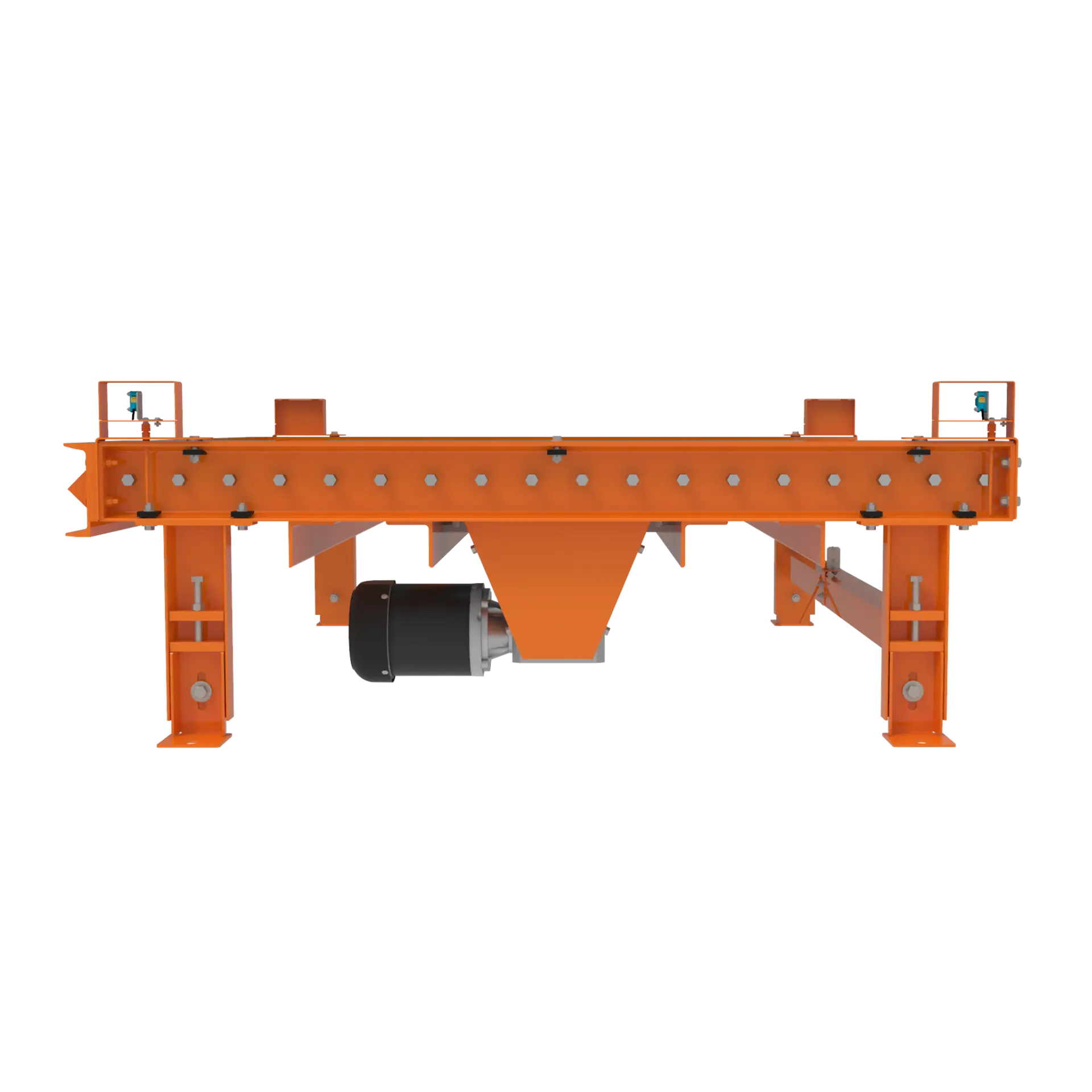

Powered Conveyor Rollers30 FPM Transfer Speed208/480 VAC MotorAutonomous TransfersCompatible with powered roller carts and AMR attachmentsThe Powered Conveyor – Single Bay CarryMatic Station, normally a CDLR type conveyor station, that performs automated material transfers with CarryMatic Carts, and with other powered conveyor sections, within a CarryMatic System. Stations are equipped with HMI control panels with E-stop, load present sensors, and cart alignment sensors. Guards and additional E-stop positions are also available. These stations can be used for both load and unload transfer to and from the CarryMatic Carts.
The CarryMatic system increases safety, productivity, and reduces cost. For more information, fill out the form to be contacted by a CarryMatic system expert.
Need More Information? Have Us Contact You
The Powered Conveyor – Single Bay is a stationary CarryMatic transfer station that automatically loads and unloads one material load at a time. Its powered rollers exchange loads with compatible CarryMatic carts, AMR attachments, and powered conveyor sections, reducing manual handling between production, packaging, storage, and other process areas.
The Powered Conveyor – Single Bay has a listed capacity of up to 4,000 pounds. The actual application should be reviewed based on the load’s weight, dimensions, bottom surface, and weight distribution. Connected mobile equipment must also have sufficient capacity for the material being transferred.
The powered conveyor rollers operate at a listed transfer speed of 30 feet per minute. Actual transfer performance depends on the load, conveyor configuration, controls sequence, and connected equipment. Proper roller-height alignment and load positioning are necessary for consistent movement between the station and the CarryMatic cart or AMR attachment.
The station uses a 208/480 VAC motor. The selected electrical configuration must match the power available at the installation location. Facility planning should also account for the station’s control panel, disconnects, routing, and any electrical requirements associated with connected conveyors or automation equipment.
The station includes an HMI control panel with an emergency stop, load-presence sensors, and cart-alignment sensors. These components help verify that the load and mobile equipment are correctly positioned before a transfer begins. Guards and additional emergency-stop positions are also available based on the application and surrounding workspace.
Yes. The Powered Conveyor – Single Bay can transfer loads both to and from compatible CarryMatic carts and AMR attachments. It can also interface with other powered conveyor sections. Jtec will review the intended transfer direction, equipment arrangement, controls, and material flow to configure the station for the required process.
